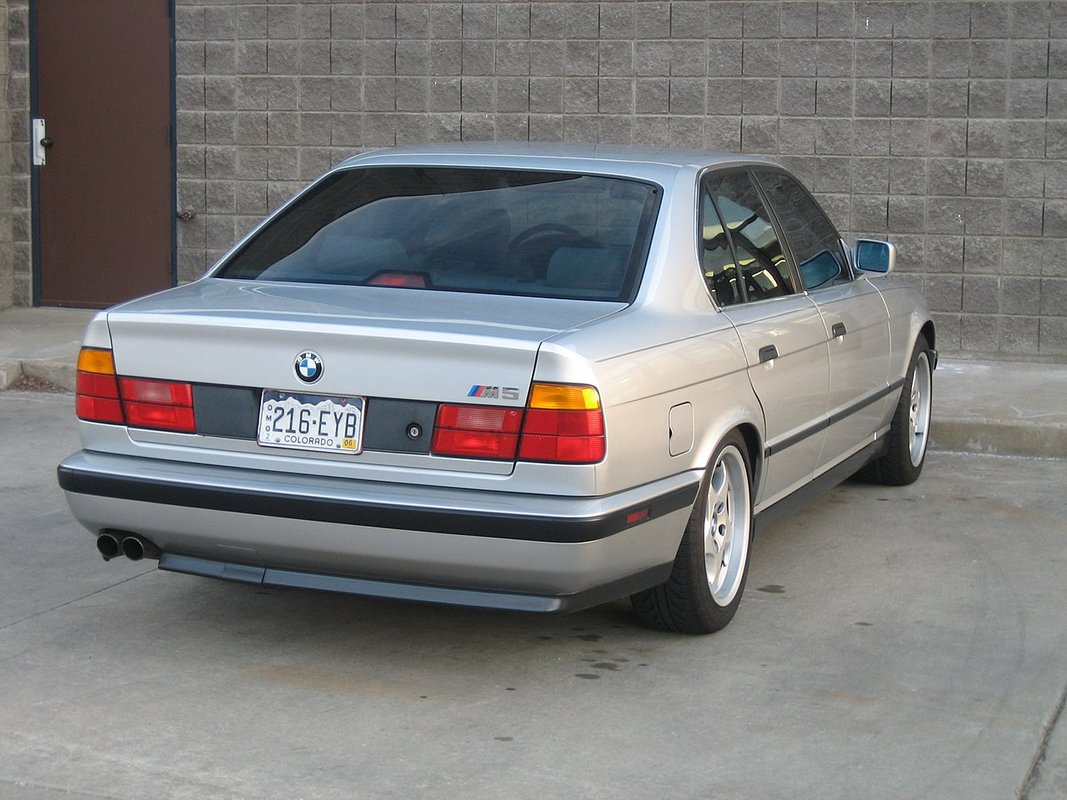

E28 / E34 5-Series
1981-1996 / Sedan / Germany
The BMW 5-Series, spanning the E28 generation (1981-1988) and its successor E34 (1988-1996), represents the blueprint for the modern executive sedan. These cars established BMW's reputation for delivering engaging driving dynamics wrapped in understated elegance, a formula that still resonates with enthusiasts today. The E28 was particularly significant, introducing the 3.2-litre straight-six that became legendary for its smooth power delivery and willingness to rev, while the E34 took the concept further with more refined styling, better interiors, and expanded engine options ranging from economical 4-cylinder units to potent 6-cylinder variants.
In Australia, the 5-Series built a devoted following among those who appreciated its balance of practicality and performance. These cars appeared regularly in club meetings and shows throughout the 1980s and 1990s, and they've aged remarkably well, with many examples still being actively driven rather than mothballed. The E28 in particular has become something of a darling in the classic car scene, prized for its uncomplicated engineering, strong build quality, and the fact that a set of skills and basic tools will sort most mechanical gremlins. The E34 offers more creature comforts and refinement for those seeking a slightly more modern experience.
What makes both generations compelling is their honesty. They don't shout or demand attention, but once you're behind the wheel on a decent road, they reward you with precision steering, composed handling, and an engine note that reminds you why BMW built their reputation on straight-sixes. Parts availability remains reasonable, and the community of owners is passionate and helpful, making these thoroughly livable classic daily drivers or weekend warriors depending on your inclination.
Thinking of buying a E28 / E34 5-Series?
What to look for, what to pay, what to avoid.
What to watch for.
1. Timing Chain and Tensioner Wear
Critical Engine, M30 (E28 535i, E34 535i)
1. Timing Chain and Tensioner Wear
CriticalRattling from the front of the engine on cold startup, lasting several seconds until oil pressure builds. The rattle may also appear briefly when restarting a warm engine. In severe cases, a constant rattle or chain slap noise.
The M30 uses a single-row timing chain with a hydraulic tensioner and plastic guide rails. Over 200,000+ km, the chain stretches and the guides wear. The tensioner's hydraulic chamber drains when the engine sits, allowing slack in the chain on startup.
Replace the timing chain, tensioner, and guide rails. The job is done from the front of the engine with the radiator removed. Parts: Iwis chain ($80-100), tensioner ($120-180), guide rails ($80-120). Labour: 4-6 hours. Total workshop cost: $800-1,400. Use only Iwis brand chains, cheap alternatives stretch prematurely.
2. Oil Leaks (M30)
Critical Engine, M30 (E28 535i, E34 535i)
2. Oil Leaks (M30)
CriticalOil weeping from the valve cover gasket, oil filter housing gasket, oil pan gasket, rear main seal, and front crank seal. Oil residue on the underside of the engine and on the exhaust manifold.
Cork and rubber gaskets degrade over decades. The oil filter housing gasket, a large O-ring that seals the filter housing to the block, is the most critical because it leaks directly onto the exhaust manifold.
Full reseal. Valve cover gasket ($15-25, 30 minutes), oil filter housing O-ring ($8-15, 1 hour), oil pan gasket ($25-40, requires lifting the engine slightly, 3-4 hours), rear main seal ($20-30, requires gearbox removal, 6-8 hours). Workshop cost for full reseal: $1,000-2,000. Prioritise the oil filter housing gasket, oil on the exhaust manifold is a fire hazard.
3. VANOS Seal Failure
Common Engine, M50/M52 (E34 520i, 525i, 530i)
3. VANOS Seal Failure
CommonRattling from the front of the engine on startup, loss of power and torque below 3,000 rpm, rough idle, and in some cases a check engine light. The engine may feel flat and unresponsive at low RPM but pull normally above 4,000 rpm.
The VANOS (Variable Nockenwellensteuerung) unit uses oil pressure to adjust the intake camshaft timing. The internal O-ring seals harden with age and heat cycling, causing oil pressure loss within the VANOS unit. Without proper oil pressure, the VANOS cannot advance the camshaft timing, resulting in reduced low-end performance.
VANOS seal replacement. The VANOS unit is at the front of the engine and can be removed without removing the head. Aftermarket VANOS seal kits (Beisan Systems is the go-to brand) cost $80-150 and include all seals and O-rings. Labour: 3-4 hours. Workshop cost: $400-700. This is a well-documented DIY job with extensive guides available online.
4. M60 V8 Nikasil Bore Wear (E34 530i, 540i)
Minor Engine, M50/M52 (E34 520i, 525i, 530i)
4. M60 V8 Nikasil Bore Wear (E34 530i, 540i)
MinorProgressively worsening cold-start difficulty, rough idle when cold that smooths out as the engine warms, increasing oil consumption (more than 1L per 1,000 km), and eventually misfiring and low compression.
The M60 V8 used Nikasil (nickel-silicon carbide) cylinder bore coatings in early production. Nikasil is attacked by sulphuric acid, which forms when high-sulphur fuel burns and the resulting sulphur dioxide mixes with condensation in the cylinders. Australian fuel in the 1990s had relatively high sulphur content, and many Australian-delivered M60 engines have suffered bore wear as a result. The wear is irreversible, there is no gasket or seal that can fix it.
The only proper fix is a replacement engine block or resleeving with steel liners. A replacement long block costs $5,000-10,000. Resleeving is $3,000-6,000. For most E34 530i/540i owners, the repair cost exceeds the car's value. Before buying any M60-powered E34, a compression test and leak-down test are essential. Compression should be above 10 bar on all cylinders with less than 1 bar variation between cylinders. Any cylinder below 8 bar indicates bore wear.
5. Expansion Tank Failure
Minor Cooling System (Both Generations)
5. Expansion Tank Failure
MinorThe expansion tank cracks without warning, dumping coolant. The engine overheats rapidly, often within 5 minutes of the leak starting. The crack typically occurs on the side of the tank or at the plastic seam. On the E34, the tank is mounted on the left inner wing; on the E28, it's on the right.
The expansion tank is made of plastic that becomes brittle with age and heat cycling. Every thermal cycle, heating when the engine runs, cooling when it's off, weakens the plastic. After 15-20 years, the tank is a ticking time bomb.
Replace the expansion tank proactively every 5-7 years. E28 expansion tank: $40-70. E34 expansion tank: $50-80. This is a 15-minute job. Replace the cap at the same time, the pressure relief valve in the cap is critical for system pressure regulation. Always carry a spare expansion tank in the boot.
6. Water Pump Impeller Failure
Minor Cooling System (Both Generations)
6. Water Pump Impeller Failure
MinorThe engine overheats despite the cooling system appearing intact, no leaks, hoses firm, fan running. The temperature gauge climbs steadily in traffic or at low speed.
The factory water pump uses a plastic impeller that degrades over time. The impeller blades crack, break, or spin free on the shaft, drastically reducing coolant flow. From the outside, the pump appears to be working, the belt is turning, no noise, but internally it's not moving water.
Replace the water pump with a metal-impeller aftermarket unit (Stewart Components or equivalent). Cost: $100-200 for the pump, 2-3 hours labour. Always replace the thermostat ($30-50) and all associated gaskets and O-rings at the same time. Workshop cost: $400-700 for pump and thermostat together.
Join the conversation.
Common questions.
Buying
In 2026, a clean, roadworthy E28 535i in manual costs $15,000-25,000 AUD. Exceptional examples with full history push to $28,000-38,000.
Maintenance
The cooling system. Full stop.
Technical
Mechanically, the M30B34 is essentially the same engine in both cars. The E34 version has slightly updated ancillaries, revised intake manifold, updated Motronic ECU (1.
Parts and Servicing
- **BMW dealers:** Still stock many mechanical parts through the BMW Classic Parts program. Expensive but genuine.
